Description

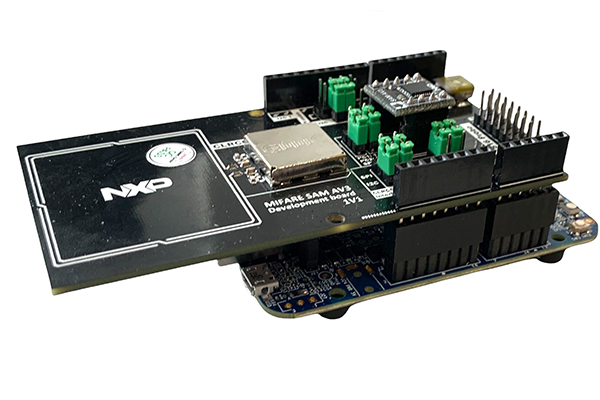

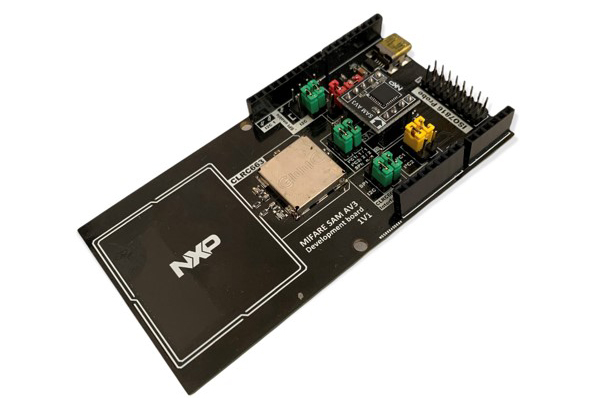

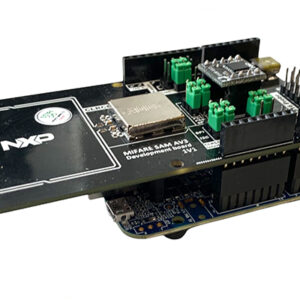

In need to evaluate and develop applications with the MIFARE SAM AV3?The MIFARE SAM AV3 evaluation board is designed to help evaluating all features of and operating modes of the MIFARE SAM AV3 chip in combination with any MCU development board featuring Arduino connectors. It supports rapid application development for secure contactless tags. The evaluation board incorporates Arduino-, and ISO7816 adapter connectors, a 13.56 MHz CLRC663plus NFC frontend IC and an embedded antenna. The various modes can be configured via jumper settings.
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 9 × 6.5 × 1.5 in |
| types | 5020-MDSOM-001, 5020-MDSRM-001, 5020-MDSSM-001 |
- Arduino shield form factor
- X-mode, S-mode and ISO/IEC 7816 configurable
- Exchangeable SAM AV3 module

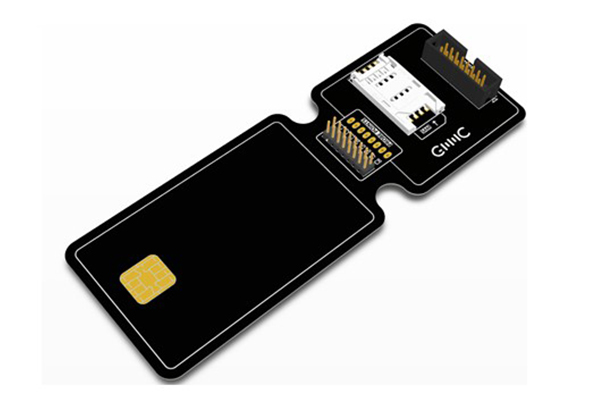

- Additional ISO/IEC 7816 adaptor
- Cables, MIFARE DESFire cards, SIM sized SAM card
