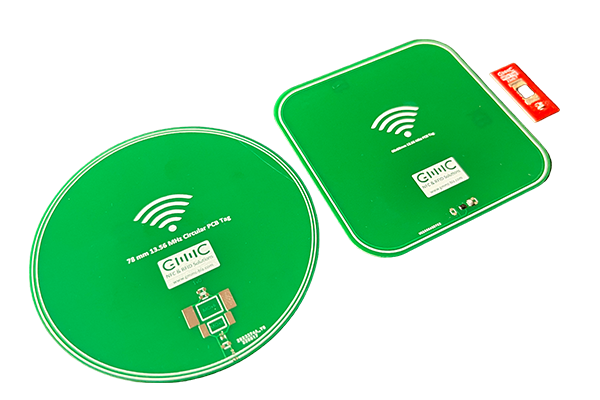

NFC PCB Tags
- Description
- Additional information
- Specification
Description

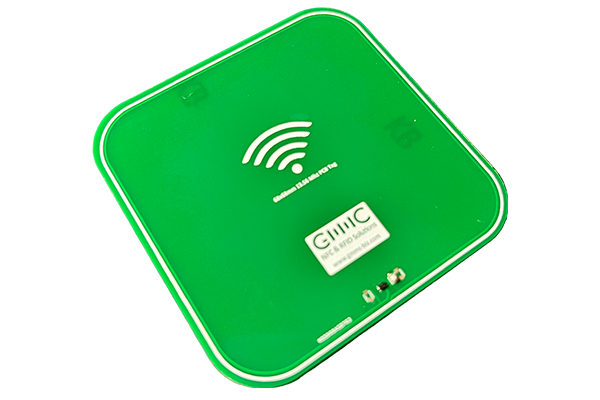

Rectangular
- example PCB tag: 68x68mm (2.68×2.68in)
- 0.6mm (0.024in) PCB thickness
- XSON IC package (ICODE)
- external tuning capacitors
- Option: individual silk screen

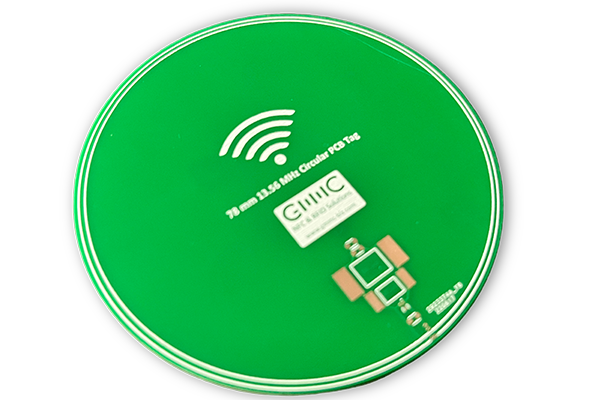

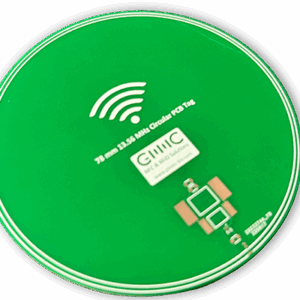

Circular
- example PCB tag: ⌀78mm (3.07in)
- 0.6mm (0.024in) PCB thickness
- IC package solder option: XSON, MOx6, MOx8
- external tuning capacitors
- Options: individual silk screen and color
Customized
- Choose your shape, color, PCB-material and tag IC package
- designed to your requirements
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 9 × 6.5 × 1.5 in |
| types | 5020-MDSOM-001, 5020-MDSRM-001, 5020-MDSSM-001 |
- Arduino shield form factor
- X-mode, S-mode and ISO/IEC 7816 configurable
- Exchangeable SAM AV3 module
- Additional ISO/IEC 7816 adaptor
- Cables, MIFARE DESFire cards, SIM sized SAM card
